Detecting Swimming Pool Leaks with a Thermal Imager: The Complete Guide
Introduction
Swimming pools are meant to be a source of relaxation and enjoyment, but a hidden leak can quickly turn them into a source of stress and unexpected expense. Detecting leaks early is crucial to preventing structural damage, wasted water, and rising costs. Traditionally, leak detection involves pressure testing, dye testing, and manual inspection — all of which can be time-consuming and invasive.
Enter thermal imaging. Using a thermal imager (infrared camera) to detect pool leaks is a modern, non-invasive, and highly effective method that’s gaining popularity among pool professionals. In this comprehensive guide, we’ll explain how thermal imaging works, why it’s ideal for detecting leaks, how the process is carried out, and why hiring a professional is often the best route.
What Is Thermal Imaging?
Thermal imaging (also called infrared thermography) uses a special camera that detects infrared radiation (heat) emitted by objects. Every object has a temperature and emits infrared energy. Thermal imagers convert this invisible energy into a visible image, showing different surface temperatures as different colors.
In the context of swimming pools, thermal cameras help locate temperature variations on pool surfaces, surrounding decking, and underground soil. These variations can signal:
- Cold water leaking into warm soil
- Warm water escaping into cooler surroundings
- Moisture accumulation beneath surfaces
This technology allows pool professionals to visually “see” temperature anomalies that the human eye cannot detect.
Why Thermal Imaging Is Ideal for Pool Leak Detection
1. Non-Invasive and Fast
Unlike traditional methods that may require digging or breaking tiles, thermal imaging is non-destructive. It can be done without draining the pool or damaging the surface, saving time and cost.
2. High Accuracy
Thermal imaging can detect very small leaks early, before they cause major damage. Even subtle temperature differences in soil or concrete can reveal the path of leaking water.
3. Time and Cost Savings
Quickly identifying the leak source minimizes time spent searching. This saves labour costs and reduces the risk of misdiagnosing the issue.
4. Versatile Application
Thermal imaging works on pools, spas, pipes, decking, and underground plumbing lines. It can also be combined with pressure tests or acoustic listening devices for even more accurate results.
How Thermal Imaging Detects Leaks
Thermal imaging works by detecting temperature differences caused by escaping water. Here’s a simplified overview:
- Leaks Alter Local Temperatures
Escaping water cools down (or warms up) the surrounding material depending on its temperature relative to the environment. - Soil Moisture Retains Heat Differently
Wet soil and dry soil absorb and release heat differently, creating visible thermal contrast on the surface. - Camera Captures Infrared Signatures

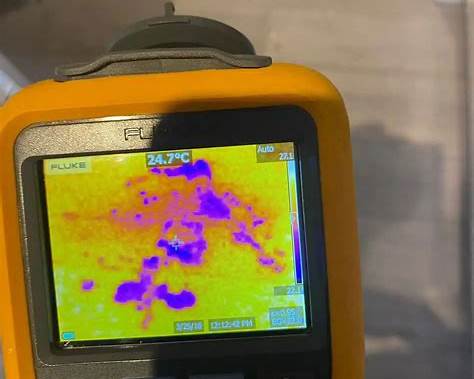

A thermal imager captures these heat signatures and displays them as color-coded images. Cooler areas often show up as blue/purple, while warmer areas appear red/orange/yellow. - Analysis of Patterns
A technician interprets these patterns to identify likely leak points.
This technique is particularly useful shortly after the pump system has been running or when there’s a temperature difference between the pool water and the surrounding environment.
The Step-by-Step Process of Using a Thermal Imager
Step 1: Preliminary Inspection
- Visually inspect the pool area for obvious signs of leaks (wet patches, cracked tiles, water loss).
- Record water levels and note the rate of water loss.
Step 2: Prepare the Site
- Turn on the pool circulation system to move water and ensure temperature distribution.
- Ideally, perform the thermal scan when there’s a temperature difference of at least 5°C between the pool water and the surrounding environment (early morning or evening is ideal).
Step 3: Conduct the Thermal Scan
- Use a high-resolution thermal imager.
- Slowly scan the entire pool structure: pool floor, walls, skimmer areas, return lines, steps, joints, and surrounding deck.
- Pay close attention to plumbing runs and common leak-prone points.
Step 4: Identify Anomalies
- Look for temperature anomalies (cold or hot spots) that indicate possible water movement.
- Use image overlays and contrast settings to enhance visibility.
Step 5: Confirm the Leak Location
- Once a thermal anomaly is detected, confirm it by:
- Pressure testing the pipe section
- Conducting a dye test in the suspected area
- Using an acoustic leak detector (optional)
Step 6: Document and Report
- Record thermal images with notes on suspected leak points.
- Provide the client with a report outlining findings and recommendations for repair.
Common Leak Points Thermal Imaging Can Detect
- Skimmer throats and gaskets
- Return fittings and suction lines
- Pool light niches and conduits
- Structural cracks in gunite or fiberglass shells
- Underground pipe runs
- Expansion joints
- Main drains
Thermal imaging is especially effective at finding underground leaks that aren’t visible at the surface, which are often the most costly and time-consuming to locate using traditional methods.
Limitations of Thermal Imaging
While highly effective, thermal imaging does have some limitations:
- Dependent on temperature differences – A noticeable temperature contrast between water and the surrounding material is needed.
- Surface interference – Direct sunlight or wind can affect surface temperatures and make leaks harder to detect.
- Requires skilled interpretation – Reading thermal images correctly requires experience and training.
- Cannot see through solid objects – Thermal imagers detect surface temperatures only, not through walls or thick concrete.
For these reasons, thermal imaging is often combined with other leak detection methods to provide a complete and accurate assessment.
Benefits of Hiring a Professional Thermal Leak Detection Specialist
Although you can buy or rent a thermal imager, detecting leaks accurately takes experience. Hiring a professional offers several advantages:
- Expertise in thermal image interpretation
- Access to high-end industrial-grade cameras
- Integration with pressure testing, acoustic devices, and dye tests
- Accurate pinpointing to avoid unnecessary digging or cutting
- Detailed reports for insurance or warranty claims
Investing in a professional inspection can save you thousands in potential structural damage by catching leaks early.
Preventing Future Pool Leaks
Once your leak has been found and repaired, take proactive steps to prevent future leaks:
- Maintain balanced water chemistry to avoid corrosion or surface damage.
- Regularly inspect and service pool equipment.
- Clean baskets and skimmers to prevent blockages.
- Watch for early signs of water loss, cracks, or loose tiles.
- Schedule annual professional inspections if your pool is older or heavily used.
SEO-Optimized Keywords to Target
Including these keywords in your blog post, meta description, headings, and image alt tags can help improve search engine rankings:
- swimming pool leak detection
- thermal imaging for pool leaks
- infrared pool leak detection
- detect pool leaks without draining
- non-invasive pool leak detection
- swimming pool leak repair
- pool water loss detection
- pool leak specialist near me
Conclusion
Thermal imaging has transformed the way pool leaks are detected. It’s fast, accurate, and non-invasive, making it an invaluable tool for both homeowners and pool service professionals. By detecting leaks early, you can prevent costly structural damage, save water, and extend the lifespan of your pool.
If you suspect your pool is losing water and want a modern, effective solution, contact a professional who offers thermal imaging leak detection. It’s the smartest way to protect your investment and keep your pool in perfect condition.
